HIDSBMT - HIDSB Double Ended Shear Beam Load Point Mounting Hardware

HIDSBMT - HIDSB Double Ended Shear Beam Load Point Mounting Hardware

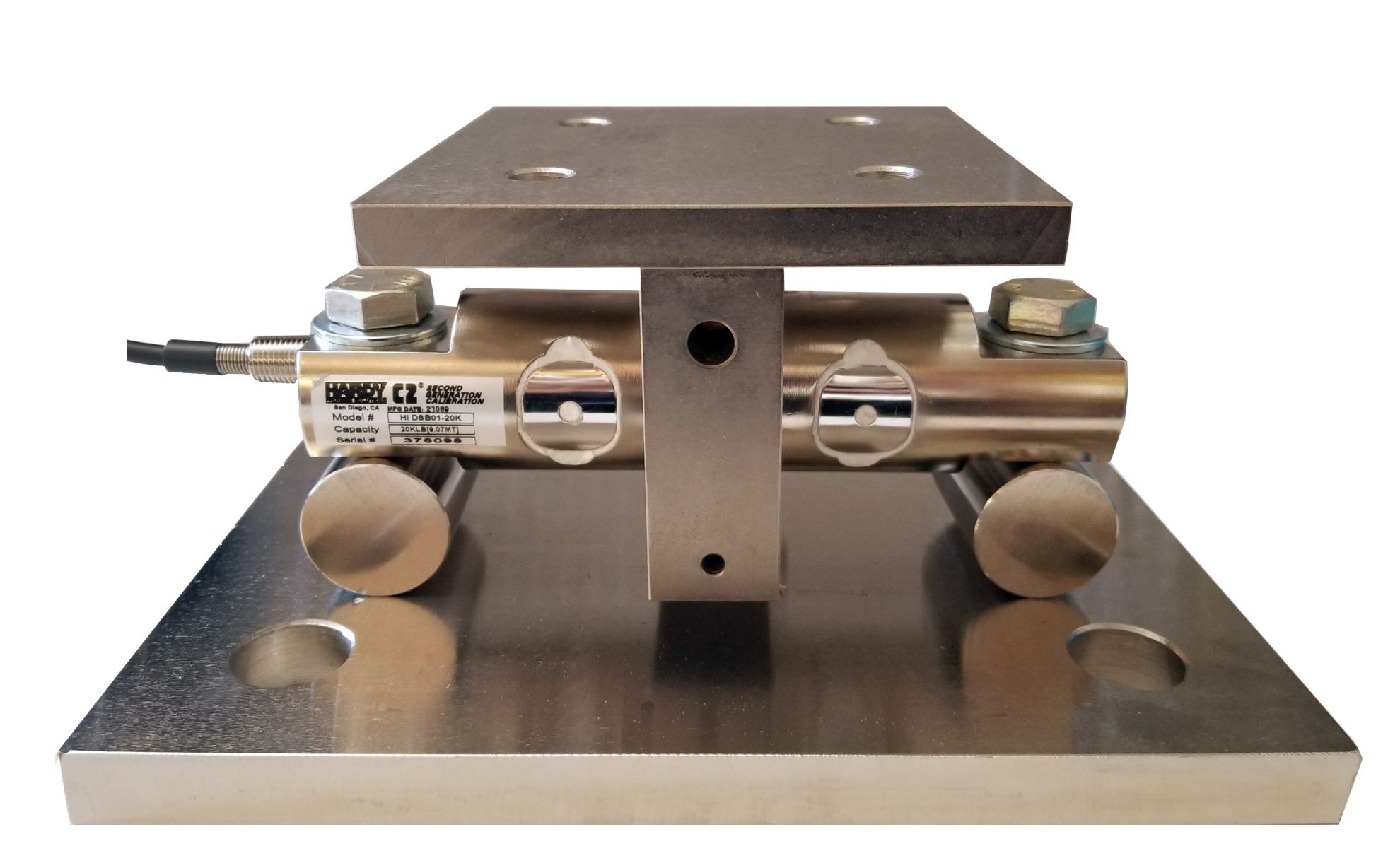

The Hardy HIDSBMT family is designed exclusively for the HIDSB01 and HIDSB02 Double Ended Shear Beam load cells in applications with medium to high-capacity tanks, hoppers or vessels. This series offers high load cell accuracy and reliable performance with Hardy’s industry leading C2® Electronic Calibration technology.

Complete Your System

Or call 858.278.2900 for assistance

The Hardy HIDSB01 and HIDSB02 Double Ended Shear Beam load cells are designed for use on medium to high capacity tanks, hoppers or vessels. This series offers high accuracy and reliable performance with Hardy’s industry leading C2® Electronic Calibration technology.

Ideal for high capacity tanks and vessels, the Double Ended Shear Beam series are dependable workhorses suitable for heavy duty applications. The load cells and mounts come in either alloy steel (HIDSB02) or stainless steel (HIDSB01) construction. Both Stainless Steel and Nickel plated alloy steel come in 5Klb to 200Klb (2.27 to 113.4 Metric Tons), with mounting hardware available separately.

They are oil proof, waterproof and non-corrosive, making them suitable for all kinds of environments. They have a protection rating of IP67. Both series come with a 9m (30 ft) cable.



Hardy Double Ended Shear Beam load cells are designed for use on medium to high capacity tanks, hoppers or vessels. This series offers high accuracy and reliable performance with Hardy’s industry leading C2 Electronic Calibration technology.

HIDSBMT Mounting Hardware
Capacity kbs         t*                     Mount Model#

5-20 klb          2.27 to 9.07 t          HIDSBMT-_S-5-20KLB**
30-75 klb      13.6 to 34.02 t          HIDSBMT-_S-30-75KLB
100 klb          45.36 t                      HIDSBMT-_S-100KLB
150 klb          68.04 t                      HIDSBMT-_S-150KLB
200-250 klb   90.72 to 113.4 t        HIDSBMT-_S-200-250KLB

SPECIFICATIONS - HIDSB01 Load Cell
Capacities - 5K, 10K, 20K, 40K, 50K, 60K, 100K, 150K, 200K
Rated Output (ES) - 3.0 mv/v ± 0.10%
Zero Balance - <±1.0 % Rated Output
Hysteresis - < 0.02% Full Scale
Non Linearity - < 0.03% Full Scale
Combined Error - <±0.02% R.O.
Input Resistance - 700±7 ohm
Output Resistance - 703 ± 4 ohm
Excitation - 0VDC - Maximum 15VDC
Safe Load Limit - 50% Emax Sensor
Material - Stainless Steel 17-4PH
Temperature - Compensated          0 - 150 deg. F
Temperature -  Effect on Zero     < 0.0011% FS O/deg. F
Sealing - Potted
Approvals - CE, IP67
Warranty - Two years

SPECIFICATIONS - HIDSB02 Load Cell
Capacities -  5K, 10K, 20K, 40K, 50K, 60K, 100K, 150K, 200K
Rated Output (ES - 3.0 mv/v ± 0.10%
Zero Balance - <±1.0 % Rated Output
Hysteresis - < 0.02% Full Scale
Non Linearity - < 0.03% Full Scale
Combined Error - <±0.02% R.O.
Input Resistance - 700±7 ohm
Output Resistance - 703 ± 4 ohm
Excitation  - 10VDC - Maximum 15VDC
Safe Load Limit - 150% Emax Sensor
Material  - Nickel Plated Alloy Steel
Temperature - Compensated  - 0 - 150 deg. F
Temperature -  Effect on Zero - < 0.0011% FS O/deg. F
Sealing  - Potted
Approvals - CE, IP67
Warranty - Two years

Load Sensor

Finish

Model # - HIDSBMT copy
